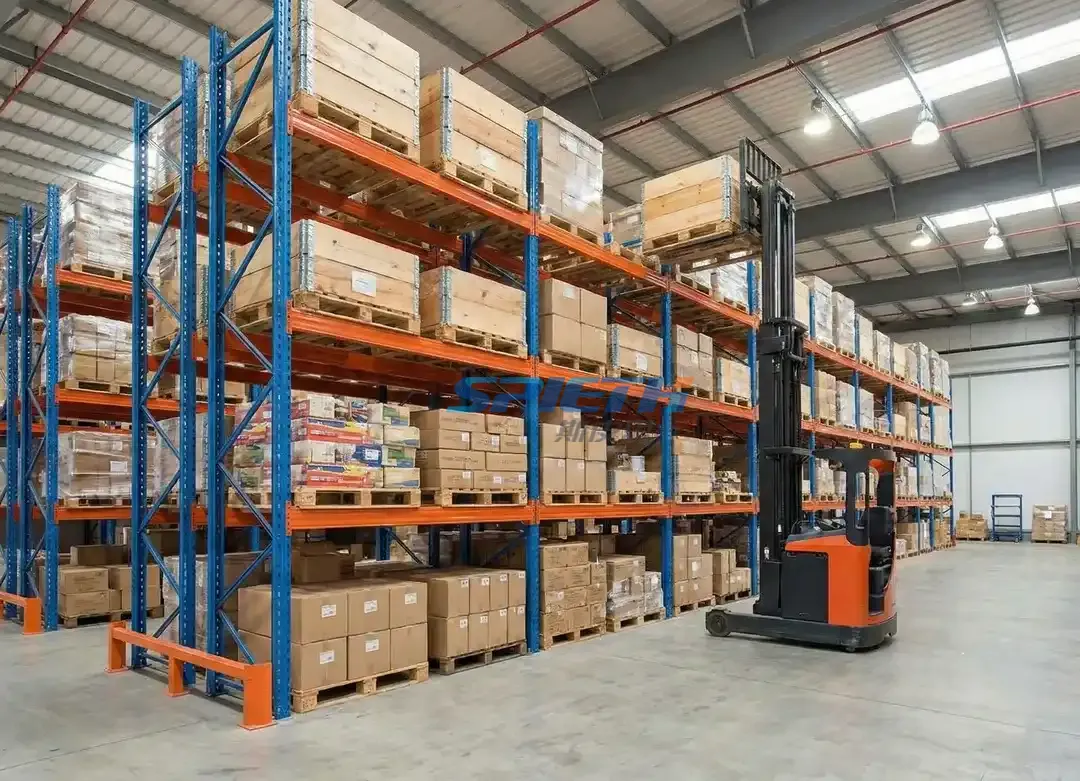

What is Selective Pallet Racking?
Selective Pallet Racking (also known as Adjustable Pallet Racking or Beam Racking) is currently the most universal and classic heavy-duty storage racking system in industrial warehousing. It is a professional storage solution designed for mechanical access via forklifts.
The core of the Selective Pallet Racking System lies in “Direct Accessibility”. Every pallet position is independent; forklifts can directly access and retrieve goods from any location without moving other pallets. This heavy-duty racking structure consists of vertical Frames and horizontal Beams, with height and depth adjustable according to specific warehouse needs.
Why Choose Us Selective Pallet Racking
100% Selectivity
Instant Accessibility. Eliminate double-handling. Gain immediate access to individual pallet loads for maximum operational efficiency.
Perfect Inventory Flow
Optimized Stock Rotation. Strictly follows FIFO (First-In, First-Out) protocols, critical for perishable goods and high-turnover inventory management.
Full Compatibility
Universal Material Handling. Seamlessly integrates with standard Counterbalance, Reach Trucks, and VNA equipment, reducing specialized MHE (Material Handling Equipment) costs.
Common Types of Selective Pallet Racking

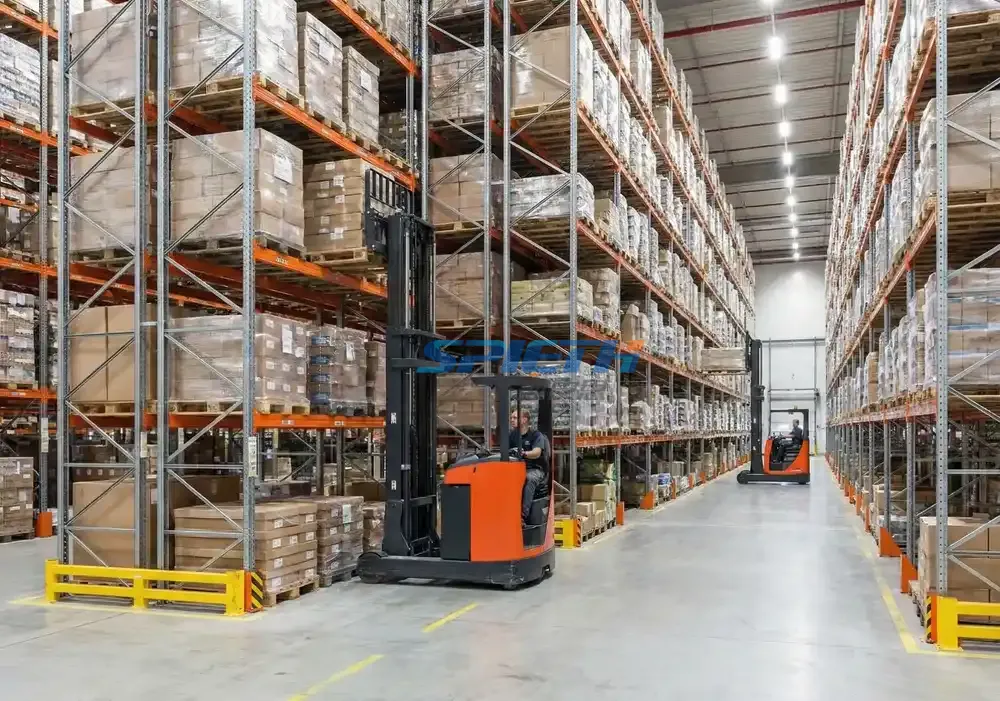

Standard Wide Aisle Racking
- Features: Aisle width is typically between 2.5m – 3.5m.
- Application: Suitable for standard counterbalance forklifts. It is the most flexible and simplest to operate industrial racking system.

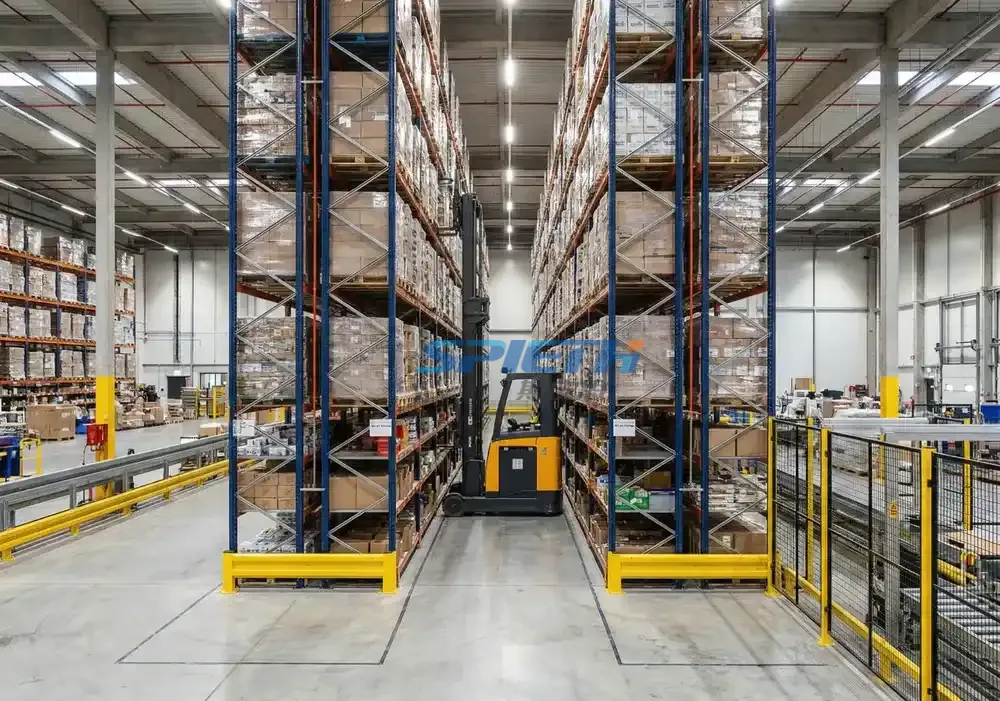

VNA Pallet Racking (Very Narrow Aisle)
- Features: Aisle width is significantly compressed (approx. 1.6m – 1.8m), significantly improving warehouse space utilization.
- Requirements: Must be used with turret trucks or rail guidance systems.

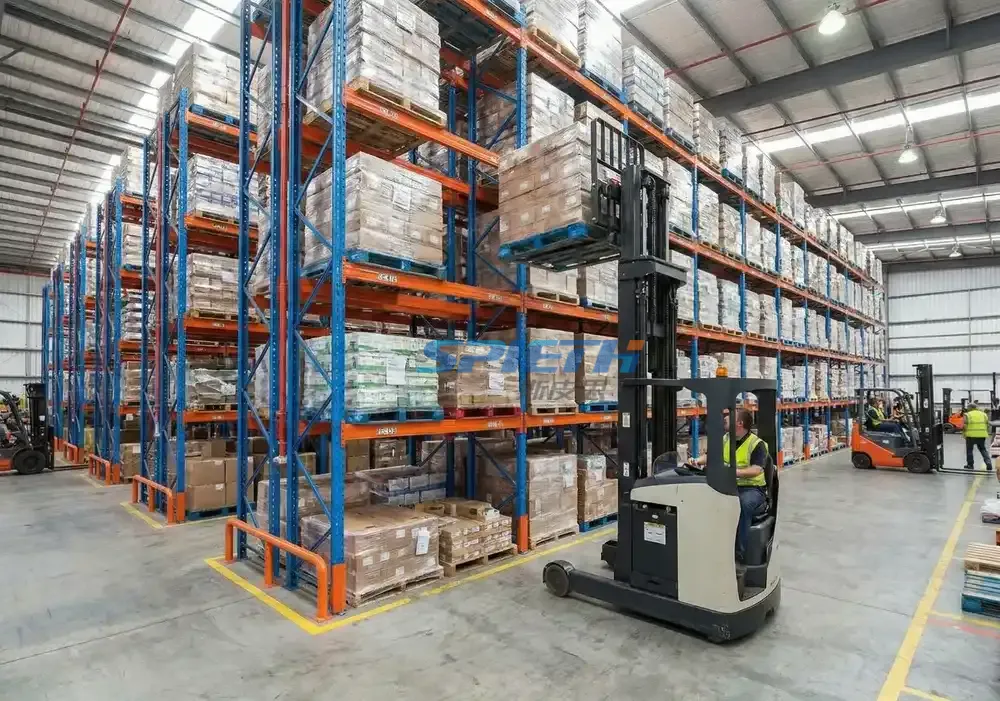

Double Deep Pallet Racking
- Features: Turns two rows of back-to-back pallet racking into four rows, doubling the depth.
- Trade-off: Increases storage density but sacrifices 50% of direct accessibility (requires scissor-type telescopic forklifts).
Advantages of Selective Pallet Racking System
100% Selectivity
Direct access to every pallet load at any time without moving other goods, ensuring access speed.
Efficient Inventory Management
Perfectly supports FIFO (First-In, First-Out) management, facilitating the monitoring of turnover and expiration dates.
High Flexibility
Racking Beam height can be adjusted in small increments (e.g., 50mm or 75mm) to easily adapt to different sizes and heights of goods.
Strong Universality
Suitable for storing almost any type, weight, and volume of industrial pallet goods.
Easy Installation
Simple structure, quick assembly and disassembly, facilitating warehouse relocation or re-layout.
Low Cost
The lowest cost-per-pallet position solution among all warehouse racking systems.

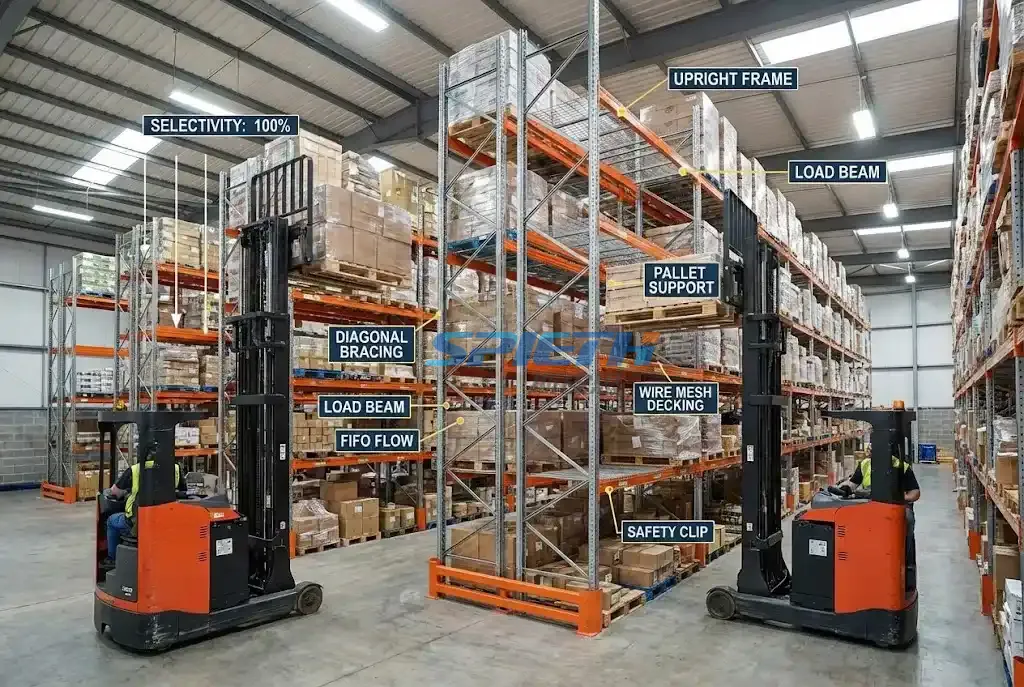

Technology and Details
Unique Upright Profile Design
Features a Multi-fold Omega (Ω) Upright Design. Compared to traditional rectangular tubes, load capacity is increased by 20% with stronger torsion resistance. Structure remains stable even under slight lateral force when fully loaded.
Double-C Interlocking Beams & Safety Pins
Racking Beams use a Double-C welded gripper process for high bending strength. Each connection point is equipped with an automatic gravity safety pin. If a forklift accidentally pushes the beam upward, the pin locks to prevent the beam from falling.
Epoxy Electrostatic Powder Coating
Say goodbye to rust and paint peeling. All racking components undergo acid washing, phosphating, and 200°C high-temperature curing. High surface hardness, corrosion resistance, and lasting gloss. Standard colors (Blue RAL5015 / Orange RAL2004) provide clear visual warning.
Technical Specifications
| Technical Index | Detailed Parameters |
|---|---|
| Main Material | High Quality Cold Rolled Steel (Q235B / Q345B High Tensile Steel) |
| Upright Specifications | 90×70 / 100×70 / 120×95 mm (Thickness: 1.8mm – 2.5mm Optional) |
| Beam Specifications | 80×50 / 100×50 / 120×50 / 140×50 mm (Welded Gripper Structure) |
| Load Capacity | 1000kg – 4500kg / Level (UDL – Uniformly Distributed Load) |
| Height Range | 2000mm – 15000mm |
| Depth Range | 800mm – 1200mm (Fits 1200×1000 or 1200×800 Standard Pallets) |
| Surface Treatment | Epoxy Powder Electrostatic Coating / Galvanized (For Cold Storage) |
| Standards | ISO9001:2015, AS4084-2012, RMI, FEM 10.2.02 |

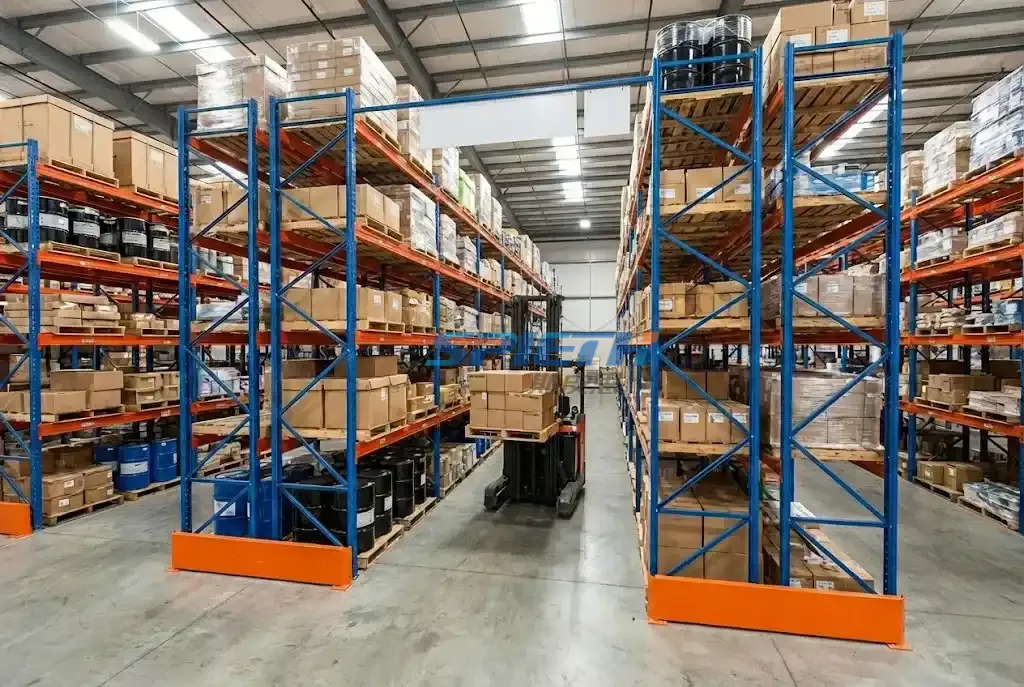

Racking Configuration / Structure
• Racking Frames / Uprights
Composed of two columns and diagonal/horizontal braces, connected by bolts. Galvanized to prevent corrosion. It is the vertical support structure of the pallet racking.
• Racking Beams
Typically orange, spanning between uprights to support pallets. Beam ends feature hooks that lock directly into the Upright Holes.
• Safety Pins
Key safety devices that prevent beams from accidentally dislodging when struck by a forklift.
Selective Pallet Racking Accessories

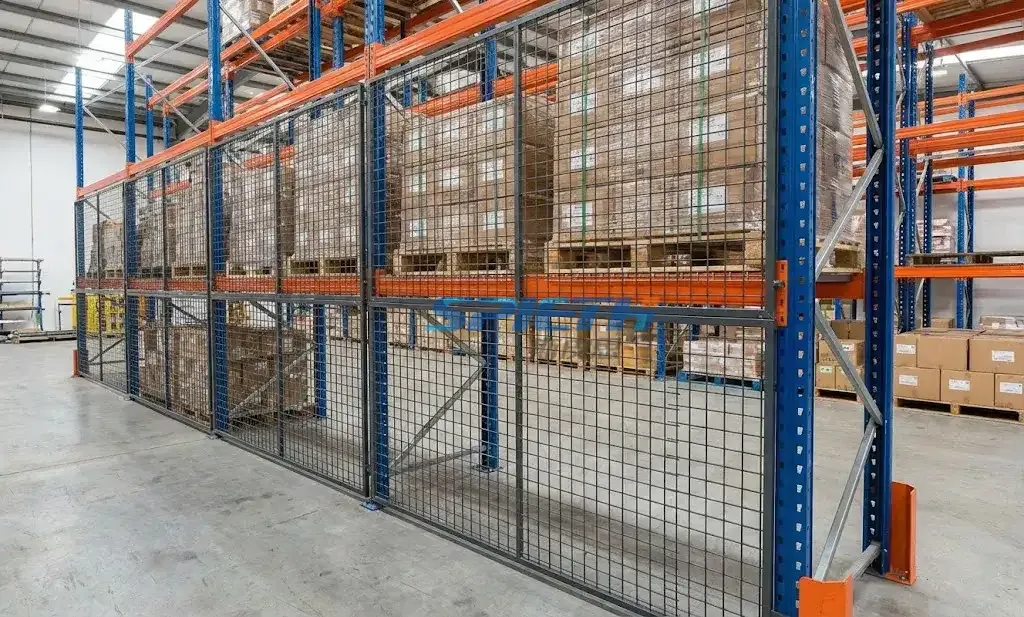

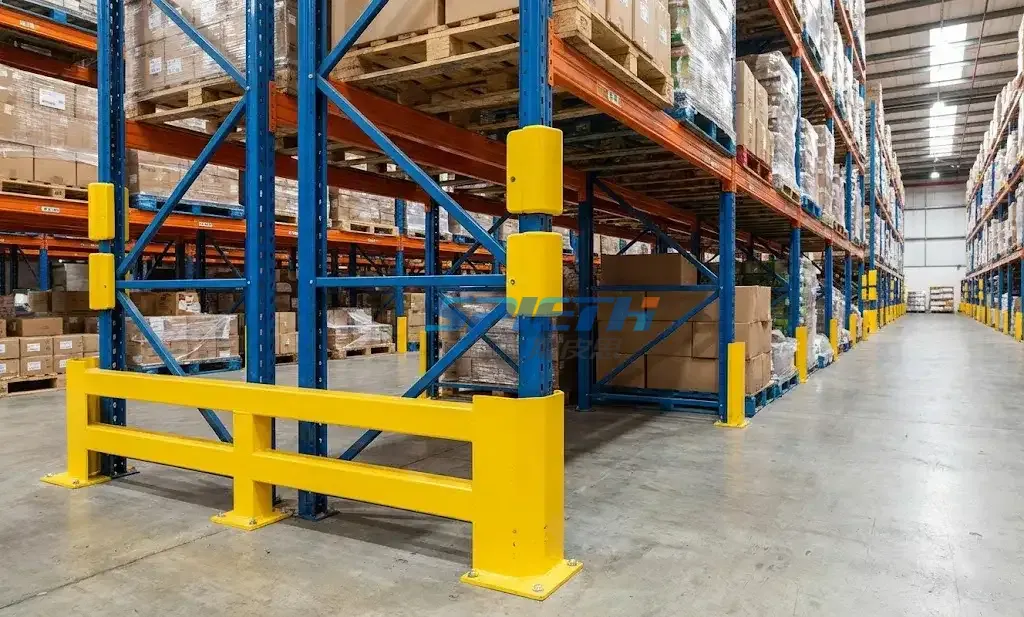

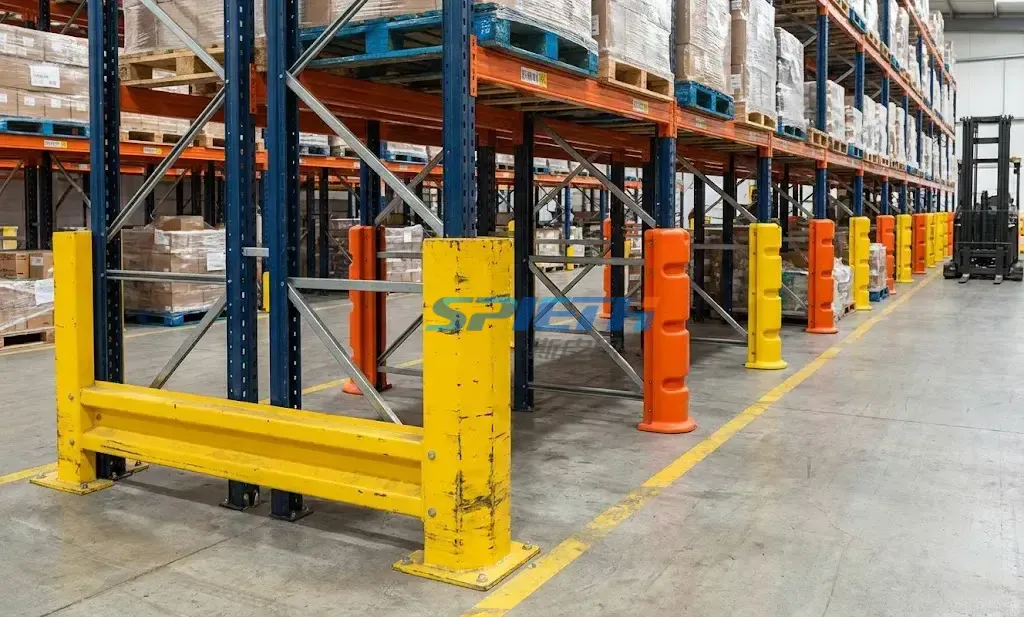

A. Racking Safety Protection

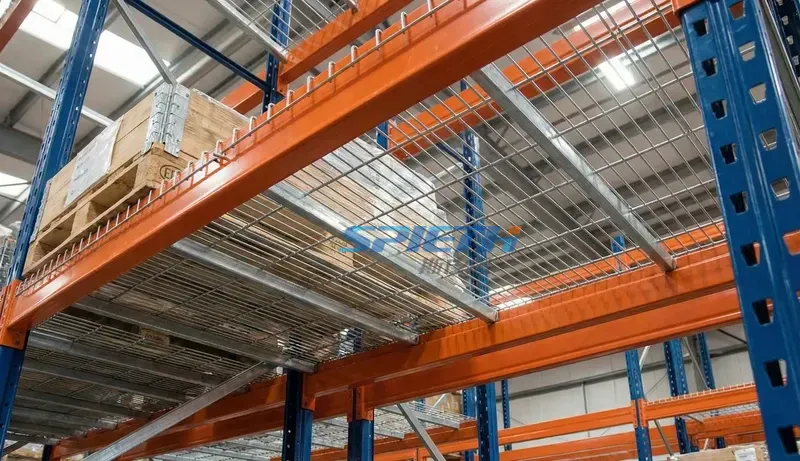

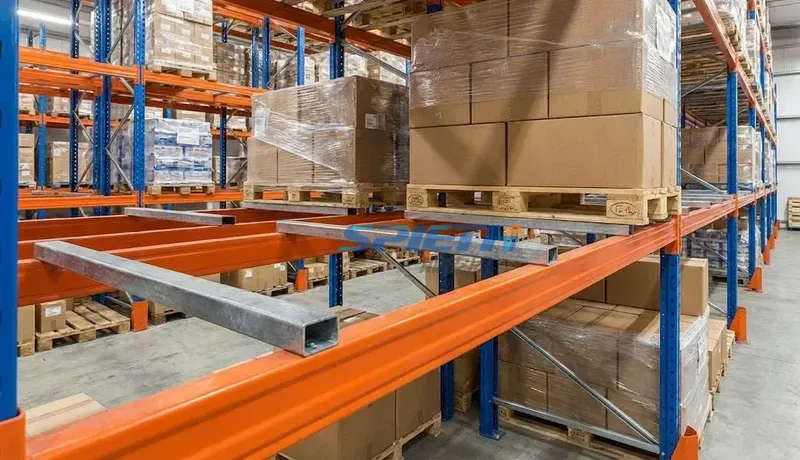

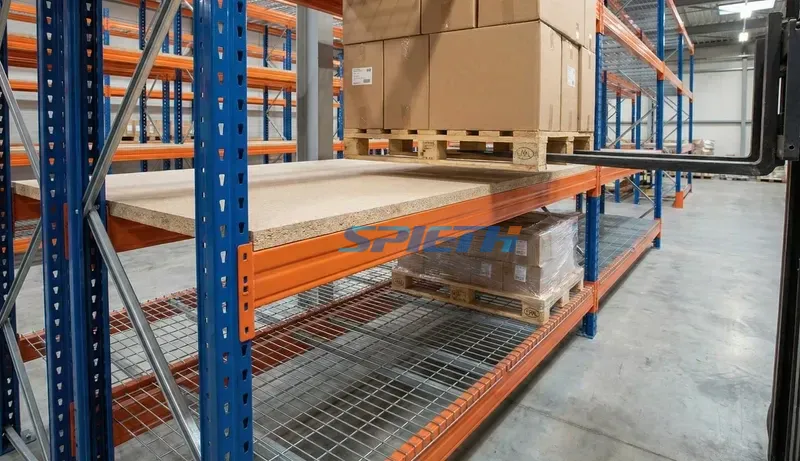

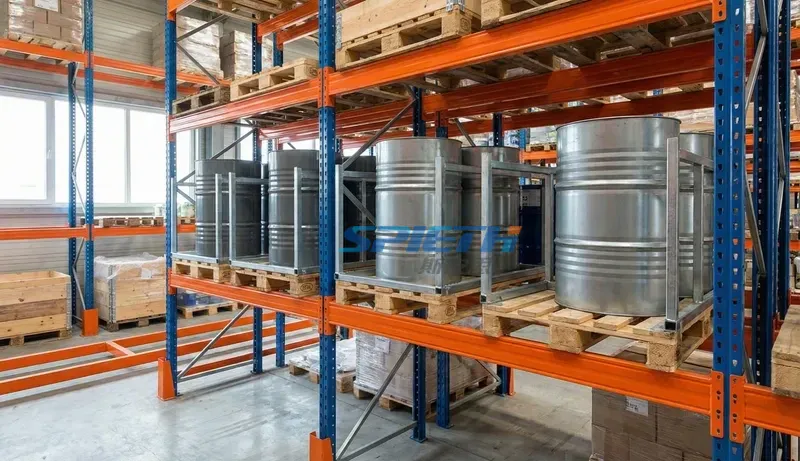

B. Load Support Accessories
Applications
Due to its high versatility, Selective Pallet Racking is suitable for most industries, especially:

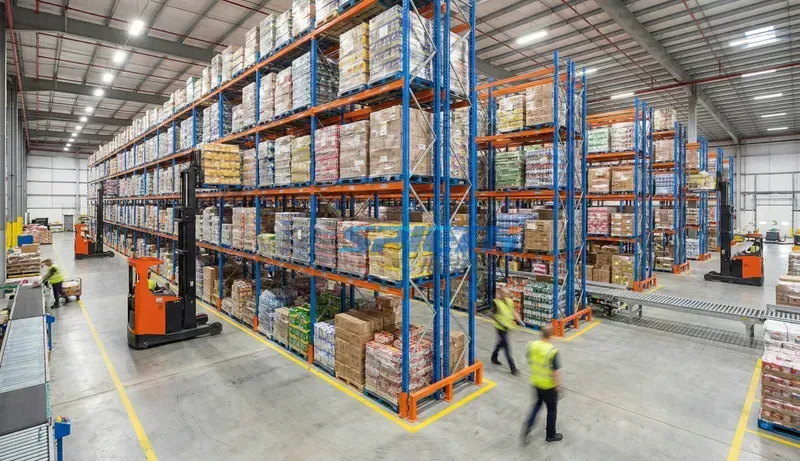

Multi-SKU Warehouses
Warehouses with large variety of products, low volume per item.

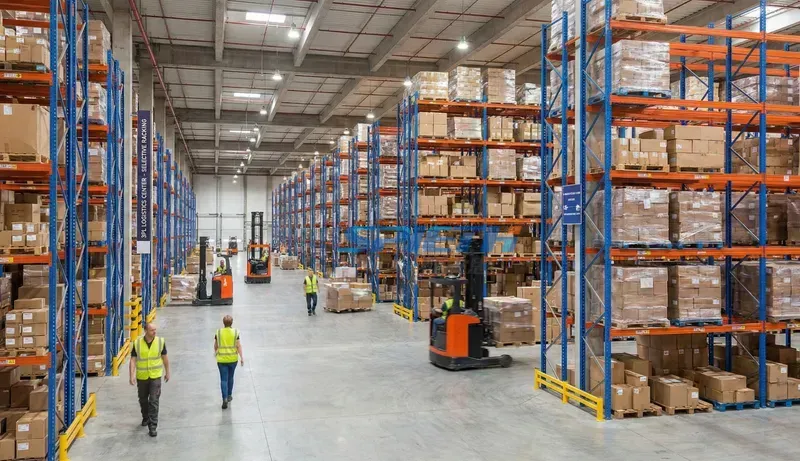

High Turnover Industries
Food & Beverage, Pharma requiring strict FIFO.

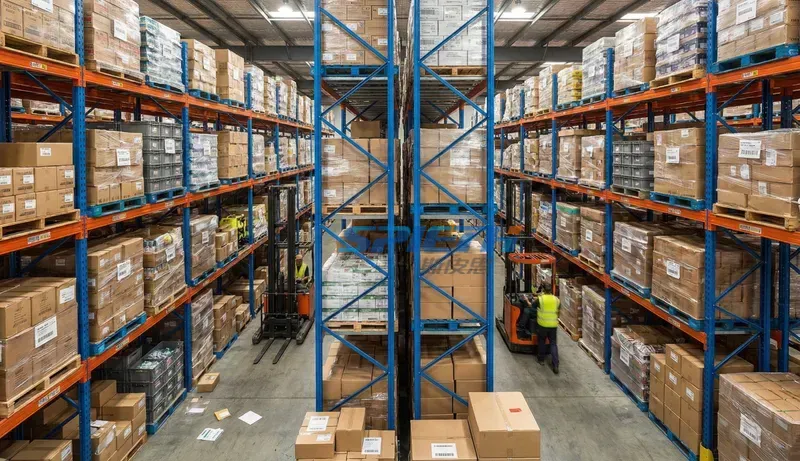

3PL Logistics Centers
Handling different clients and pallet specs.

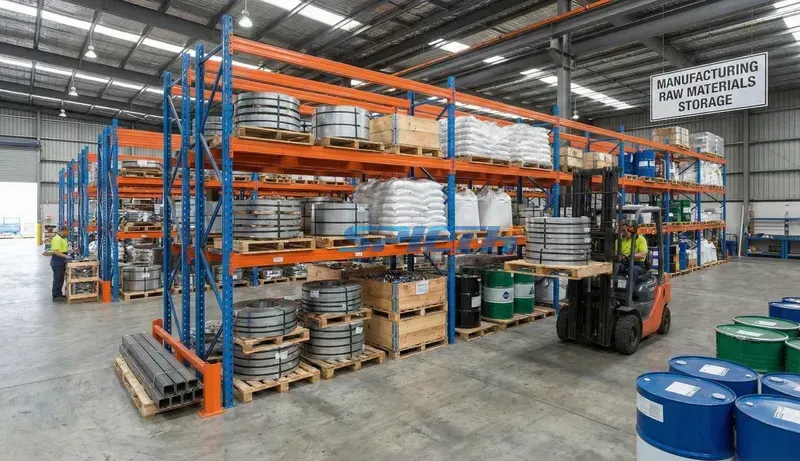

Manufacturing Raw Materials
Quick location for production line warehouses.

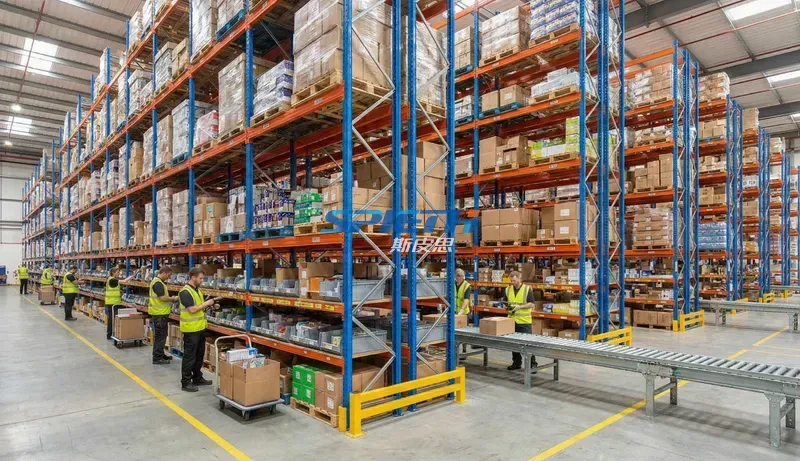

E-commerce Picking
Manual picking on low levels, storage on high.
Frequently Asked Questions
Q: What is a selective pallet rack?
A: A Selective Pallet Rack is the most common material handling storage system designed to provide 100% direct access to every pallet. It consists of vertical upright frames and horizontal load beams. It allows forklifts to retrieve any individual pallet without having to move or shuffle other pallets, making it ideal for warehouses with a high variety of SKUs (Stock Keeping Units).
Q: What are the different types of pallet racking?
A: Besides the standard Selective Racking, the most common types of industrial pallet racking include:
- Drive-In / Drive-Through Racking: High density, LIFO (Last-In, First-Out).
- Push Back Racking: High density, LIFO, uses inclined rails.
- Pallet Flow Racking: High density, FIFO (First-In, First-Out), uses gravity rollers.
- Cantilever Racking: Designed for long, bulky items like lumber or pipes.
- Radio Shuttle Racking: Semi-automated high-density storage.
Q: What are the three types of pallets?
A: In terms of material construction compatible with racking systems, the three main types are:
- Wooden Pallets: The most common, durable, and cost-effective option.
- Plastic Pallets: Durable, hygienic, and moisture-resistant; often used in food/pharma.
- Metal (Steel/Aluminum) Pallets: Extremely strong, fireproof, and durable; used for heavy loads or high-heat environments.
(Note: Pallets are also categorized by design, such as Stringer, Block, and Skid pallets.)
Q: What is the most flexible racking system that offers 100% selectivity?
A: Standard Wide Aisle Selective Pallet Racking is universally recognized as the most flexible system. It offers immediate, 100% access to every single pallet position without restriction. It is easily adjustable, supports First-In, First-Out (FIFO) inventory management, and is compatible with virtually all types of forklifts and pallets.
