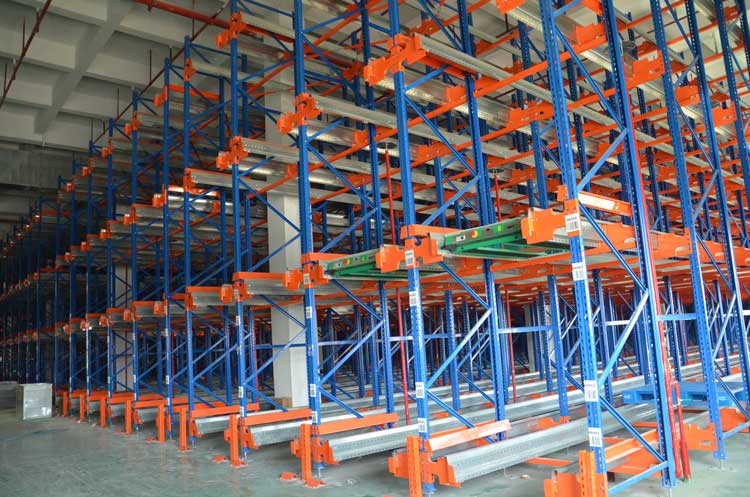

Radio Shuttle Racking System
Radio Shuttle Racking is a semi-automated high-density storage solution that combines traditional pallet racking with intelligent shuttle technology. The radio shuttle automatically transports pallets inside storage lanes, reducing forklift travel and significantly increasing warehouse efficiency.
The Radio Shuttle Pallet Racking System is ideal for warehouses seeking maximum storage density, improved productivity, and lower operating costs. The shuttle car automatically stores and retrieves pallets while forklifts remain outside the storage lanes, minimizing rack damage and improving workplace safety.
Why Choose Our Radio Shuttle Racking
Up To 85% Storage Density
Eliminate unnecessary aisles and maximize warehouse cube utilization compared with conventional pallet racking.
Faster Pallet Handling
The shuttle automatically moves pallets within storage lanes, increasing throughput and reducing handling time.
Reduced Rack Damage
Forklifts remain outside the rack structure, minimizing accidental impacts and extending rack lifespan.
Perfect For Cold Storage
Ideal for refrigerated warehouses where maximizing storage density directly reduces operating costs.

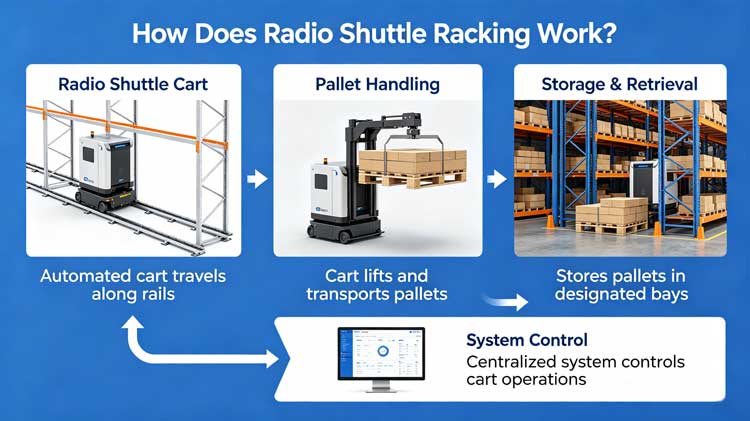

How Does Radio Shuttle Racking Work?
The Radio Shuttle System uses an intelligent shuttle car that travels on rails inside the storage channels.
A forklift places the shuttle at the entrance of a lane and loads pallets onto it. The shuttle automatically transports pallets to designated storage positions without requiring forklifts to enter the rack structure.
Using wireless remote control or warehouse management software, operators can command the shuttle to:
- Store pallets automatically
- Retrieve pallets automatically
- Count inventory positions
- Reorganize pallet locations
- Support FIFO and LIFO inventory management
This significantly improves warehouse productivity while reducing labor costs and equipment wear.
Common Types of Radio Shuttle Racking
Different warehouse operations require different pallet flow strategies. Radio shuttle systems can be configured to support FIFO, LIFO, and fully automated warehouse operations.

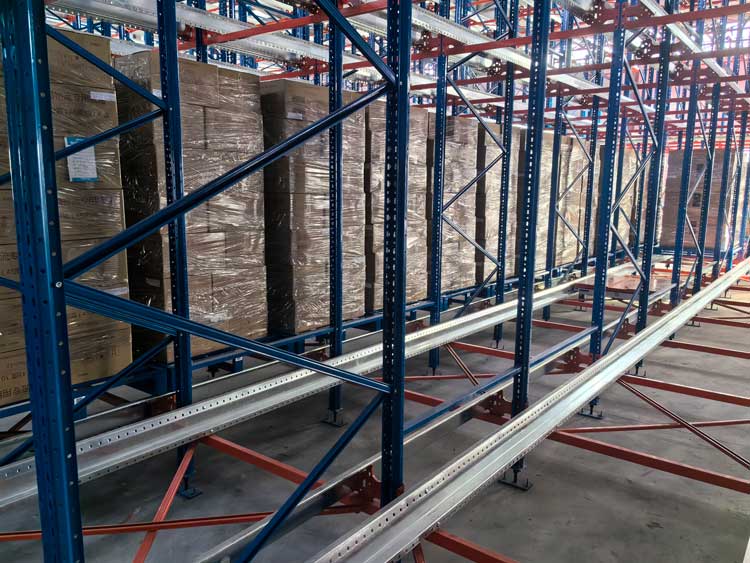

FIFO Radio Shuttle Racking
- Operation: Loading and unloading from opposite ends.
- Inventory: First-In, First-Out.
- Application: Food, beverage, pharmaceutical, and cold storage industries.

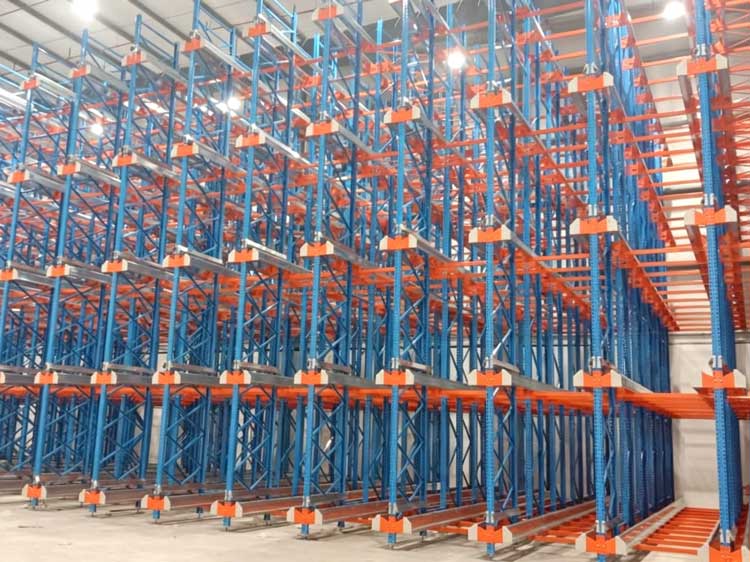

LIFO Radio Shuttle Racking
- Operation: Loading and unloading from the same side.
- Inventory: Last-In, First-Out.
- Application: Manufacturing and bulk pallet storage.

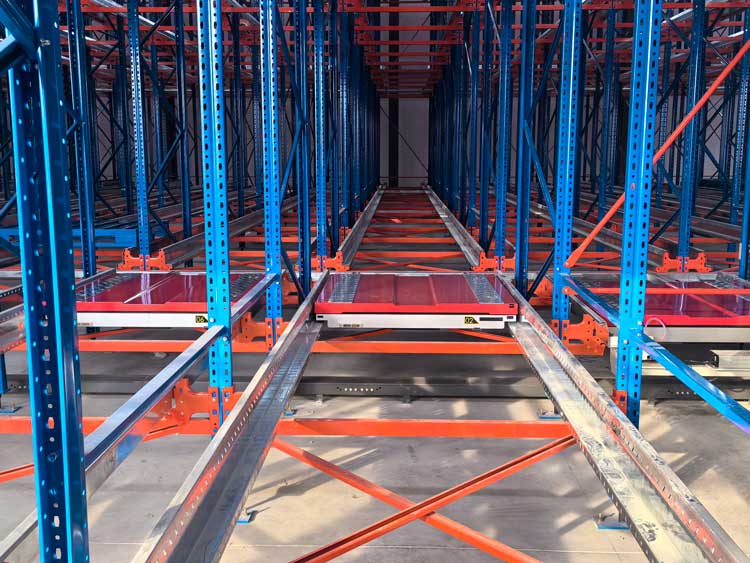

Multi Shuttle System
- High Throughput warehouse solution.
- Multiple Shuttle Cars operating simultaneously.
- Suitable For: Large logistics centers and automated warehouses.
Advantages of Radio Shuttle Racking System
High Density Storage
Achieve up to 85% warehouse space utilization by minimizing aisle requirements.
Increased Throughput
Automated pallet movement improves loading and unloading efficiency.
Reduced Labor Costs
Less forklift travel means fewer operators and lower operational expenses.
Enhanced Safety
Forklifts do not enter storage lanes, reducing rack collisions and accidents.
FIFO & LIFO Support
Flexible inventory management according to operational requirements.
Cold Storage Optimization
Ideal for refrigerated warehouses where every cubic meter is valuable.
Radio Shuttle Technology & Features
Intelligent Shuttle Car
Automatically transports pallets within storage lanes with high positioning accuracy.
Wireless Remote Control
Operators control shuttle functions using a handheld controller or tablet.
Lithium Battery Technology
Long operating hours with fast charging capability and low maintenance requirements.
Smart Sensors
Built-in sensors automatically detect pallet positions and avoid collisions.
WMS / WCS Integration
Compatible with Warehouse Management Systems for advanced inventory control and automation.
Main Components of Radio Shuttle Racking System
🚄 Shuttle Car
Core automated device responsible for pallet movement.
🛤 Guide Rails
Provide travel paths for the shuttle inside storage lanes.
🏗 Rack Frames
Heavy-duty uprights supporting the entire storage structure.
🔩 Support Beams
Connect rack frames and distribute pallet loads safely.
🔋 Charging Station
Fast charging equipment for uninterrupted shuttle operation.
🛡 Safety Devices
Rail stoppers, sensors, and emergency systems ensure safe operation.
Technical Specifications
| Technical Index | Specification |
|---|---|
| Material | High Quality Q235B / Q355B Cold Rolled Steel |
| Pallet Capacity | Up to 1,500 kg per pallet (customizable) |
| Rack Height | 2,000 mm – 15,000 mm |
| Lane Depth | Up to 40 pallet positions |
| Shuttle Speed | Approx. 0.8–1.2 m/s |
| Battery | Rechargeable Lithium Battery |
| Inventory Method | FIFO / LIFO |
| Control | Remote Controller / Tablet / WMS Integration |
| Standards | ISO9001:2015 / FEM / RMI / AS4084 |
Radio Shuttle Racking vs Drive In Racking
| Feature | Radio Shuttle | Drive In |
|---|---|---|
| Forklift Entry | Not Required | Required |
| Storage Density | Very High | High |
| Rack Damage | Very Low | Higher Risk |
| Labor Efficiency | Excellent | Moderate |
| FIFO / LIFO | Supports Both | Mainly LIFO |
| Automation Level | Semi-Automated | Manual |
Applications
Radio Shuttle Racking is widely used wherever high-density pallet storage and efficient material handling are required.
❄ Cold Storage
Frozen food and refrigerated logistics warehouses.
🍔 Food & Beverage
High-volume pallet storage with FIFO management.
🏭 Manufacturing
Raw materials and finished goods warehouses.
🚚 3PL Logistics
Distribution centers handling large pallet volumes.
💊 Pharmaceutical
Traceable inventory requiring controlled rotation.
🛒 Retail Distribution
Fast replenishment for regional distribution hubs.
Need A Customized Radio Shuttle Warehouse Solution?
Our engineering team can provide free warehouse layout design, load calculations, and tailored Radio Shuttle Racking solutions based on your pallet size, storage capacity, and operational requirements.
Request A Free Design →
Frequently Asked Questions
Q: What is a Radio Shuttle Racking System?
A Radio Shuttle Racking System is a semi-automated storage solution that uses an intelligent shuttle car to transport pallets within high-density storage lanes, reducing forklift travel and improving warehouse efficiency.
Q: Does Radio Shuttle Racking support FIFO and LIFO?
Yes. Depending on the warehouse layout and loading configuration, the system can be designed for either FIFO (First-In, First-Out) or LIFO (Last-In, First-Out) inventory management.
Q: Is Radio Shuttle better than Drive In Racking?
For many operations, yes. Radio Shuttle Racking reduces forklift traffic inside the rack, lowers the risk of structural damage, improves throughput, and provides greater operational flexibility while maintaining high storage density.
Q: What industries commonly use Radio Shuttle systems?
Typical applications include cold storage, food and beverage, pharmaceuticals, manufacturing, third-party logistics (3PL), retail distribution, and any facility requiring efficient high-density pallet storage.
Q: Can the shuttle integrate with warehouse management software?
Yes. Modern Radio Shuttle systems can integrate with Warehouse Management Systems (WMS) and Warehouse Control Systems (WCS) to enable inventory visibility, automated task scheduling, and optimized pallet movement.
